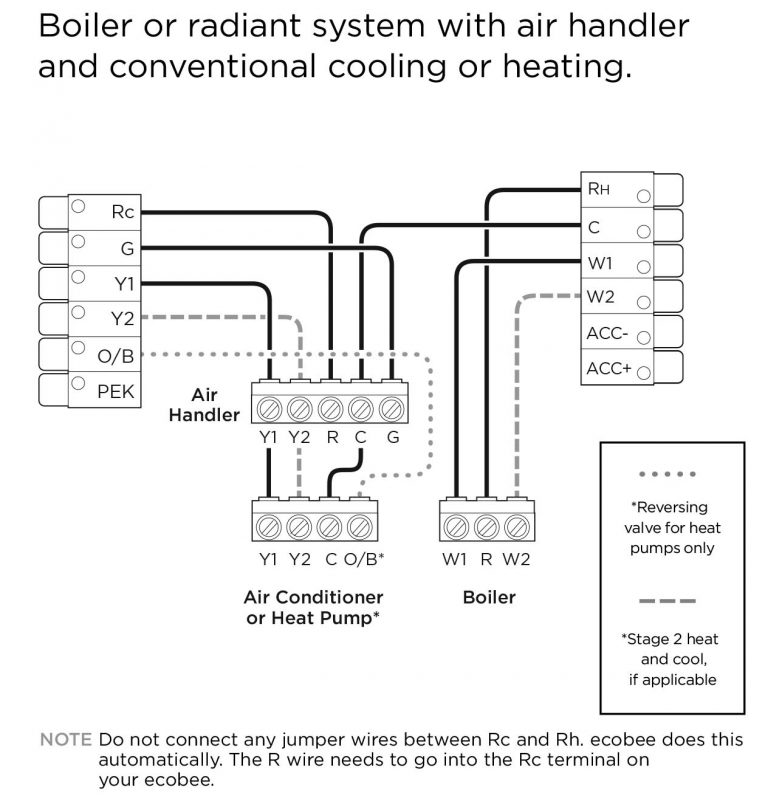

Ecobee Wiring Diagram Heat Pump. Wiring Ecobee Thermostat *Stage 2 heat and cool, if applicable *Reversing valve for heat pumps only NOTE Do not connect any jumper wires between Rc and Rh Heat pump with auxiliary heat and no C wire (Using PEK) Boiler radiant system;
Wiring Ecobee Thermostat from wiringfixmichele.z13.web.core.windows.net
Note: Do not jumper Rc or Rh, ecobee3 does this automatically In most homes, installing an ecobee thermostat is an easy process that takes about 45 minutes
Wiring Ecobee Thermostat
etc., including quick-start and installation guides, user manuals, and wiring diagrams. R can go into either Rc or Rh terminals on your ecobee3 Remove the jumper, and a wire will need to go from the ecobee W2, to the W2 at the airlander
Ecobee Wiring Diagram For Heat And Ac Wiring Diagram Pictures. What Are the Essential Wiring Components for Heat Pump Systems? Standard Wire Connections Overview Remove the jumper, and a wire will need to go from the ecobee W2, to the W2 at the airlander
Ecobee 3 Lite Wiring Guide. or Heat Pump* Boiler WIRING DIAGRAM Boiler or radiant system with air handler and conventional cooling or heating Follow the steps below or scroll down for installation guides, wiring diagrams, troubleshooting tips and more
